5-port Industrial Ethernet Switch , Gigabit Ethernet Switch With Low Power Consumption

Name: 5port Industrial Ethernet Switch Gigabit Ethernet Switch With Low Power Consumption
Brand: 3onedata
Price: 1 USD

Brand Name : 3onedata

Model Number : IES205G

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 sets per month

Packaging Details : Carton

Delivery Time : 7 Working Days

Material : Aluminum Alloy

Ethernet Ports : 5

Switch Capacity : 10Gbps

Input Power : 12~48VDC

Transmission Rate : 10/100/1000Mbps

Operating Temperature : -40~75℃

Waterproof : IP40

Warranty : 5 years

Contact Now

5-port full gigabit unmanaged DIN-rail mounting industrial Ethernet switch

Introduction

IES205G is 5-port full Gigabit layer 2 unmanaged industrial Ethernet switches. The product provides full Gigabit copper port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.

Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Specification

Standard

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

Interface

10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

LED Indicator

Port Indicator, Power Supply Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 1K

Packet buffer size: 1Mbit

Backplane bandwidth: 12G

Switch time delay: <10μs

Power

Requirement

Input voltage: 12~48VDC, 3-pin 7.62mm pitch terminal blocks

nonpolarity, reverse polarity protection

Power

Consumption

No-load: 0.86W@24VDC

Full-load: 4.63W@24VDC

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%(no condensation)

Physical

Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Weight: 387g

Dimension (W x H x D): 35mm×110mm×95mm

Industrial

Standard

IEC 61000-4-2 (ESD), Level 3

Air discharge: ±8kV

Contact discharge: ±6kV

IEC 61000-4-4 (EFT), Level 3

Power supply: common mode ±2kV, differential mode ±1kV

IEC 61000-4-5 (Surge), Level 3

Power supply: ±2kV

Ethernet interface: ±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Warranty

5 years

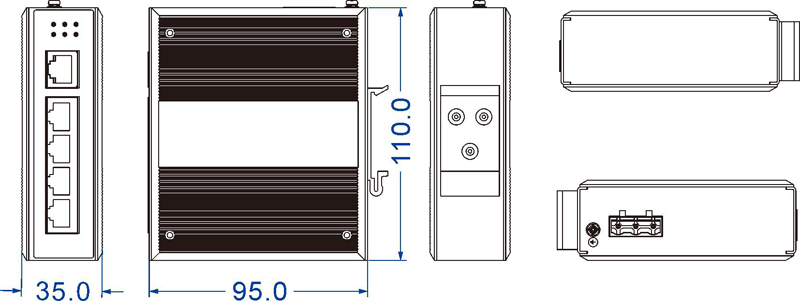

Dimension
Unit:mm

5-port Industrial Ethernet Switch , Gigabit Ethernet Switch With Low Power Consumption

Ordering Information

Available Models	Gigabit Copper Port	Power Supply Range
IES205G	5	12~48VDC
