Unmanaged 20 Port Network Switch , Full Gigabit Switch For Smart Grid

3onedata Co., Ltd.
Contact Now

Unmanaged 20 Port Network Switch , Full Gigabit Switch For Smart Grid

  • 1
  • 2

Brand Name : 3onedata

Model Number : IES3020G

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 sets per month

Packaging Details : Carton

Material : Aluminum Alloy

Ethernet Ports : 20

Switch Capacity : 40Gbps

Input Power : 12~48VDC

Transmission Rate : 10/1001000Mbps

Operating Temperature : -40~75℃

Waterproof : IP40

Warranty : 5 years

Delivery Time : 7 Working Days

Contact Now

20-port full gigabit unmanaged DIN-rail mounting industrial Ethernet switch

Introduction

IES3020G series are 16/20-port full Gigabit layer 2 unmanaged industrial Ethernet switches. This series provide Gigabit copper port and Gigabit SFP slot. They adopt DIN-Rail mounting to meet the requirements of different application scenes.



Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. Design of DIP switch can achieve the device rebooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.



Specification



Standard

&

Protocol





IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X



Interface



Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

SFP slot: 1000Base-SFP



LED Indicator



Running Indicator, Port Indicator, Power Supply Indicator



Switch

Property



Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 56G

Switch time delay: <10μs



Power

Requirement



12~48VDC, 4-pin 7.62mm pitch terminal blocks

dual power supply redundancy, reverse polarity protection, nonpolarity



Environmental

Limit



Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%~95%(no condensation)



Physical

Characteristic



Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 70mm×160mm×130mm

Weight: ≤1.08kg



Industrial

Standard



IEC 61000-4-2 (ESD) ,Level 3

IEC 61000-4-4 (EFT), Level 3

IEC 61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6



Certification



CE, FCC, RoHS



Warranty



5 years

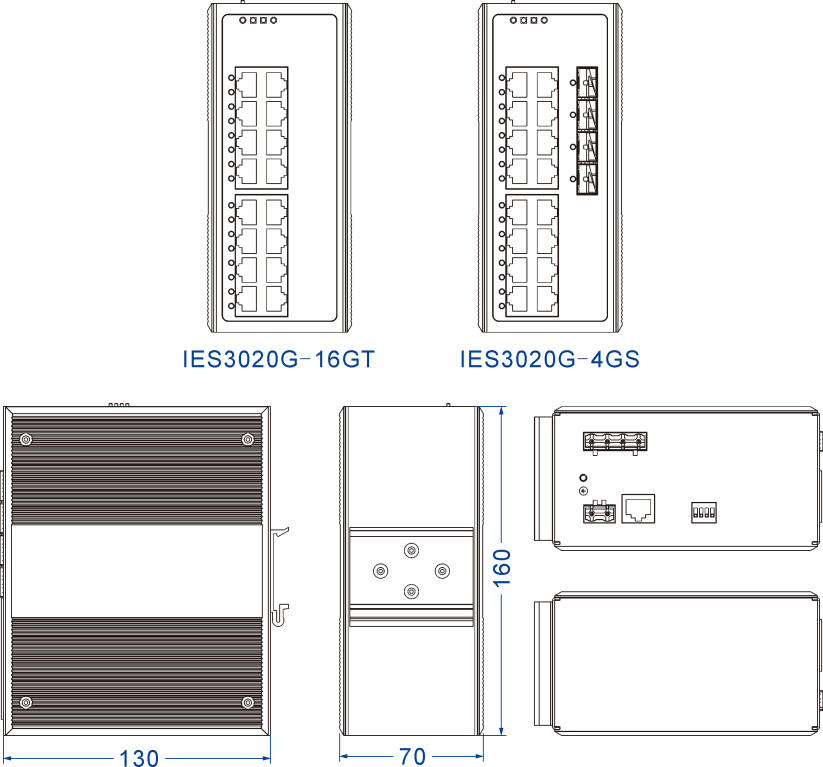

Dimension
Unit:mm

Unmanaged 20 Port Network Switch , Full Gigabit Switch For Smart Grid



Ordering Information



Available Models Gigabit SFP Slot Gigabit Copper Port Power Supply Range
IES3020G-4GS 4 16

 12~48VDC

dual power supply

IES3020G-16GT 0 16
