Full Gigabit Unmanaged Media Converter 3 Port 6 Gbps Switch Capacity

  • 1
  • 2
  • 3

Brand Name : 3onedata

Model Number : IMC102GT

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 sets per month

Packaging Details : Carton

Delivery Time : 7 Working Days

Material : Aluminum Alloy

Ethernet Ports : 3

Switch Capacity : 6 Gbps

Input Power : 12~48VDC

Transmission Rate : 10/100/1000Mbps

Operating Temperature : -40~75℃

Waterproof : IP40

Warranty : 5 years

Contact Now

3-port gigabit unmanaged DIN-rail mounting industrial Ethernet media converter

Introduction

IMC102GT series are 3-port full Gigabit unmanaged industrial media converter. This series include two types of products and provide Gigabit copper port, Gigabit fiber port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.



Design of DIP switch can achieve flow control, copper port compulsive 100M and jumbo frame. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.



Specification



Standard & Protocol





IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control


Interface



Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 1000Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP



LED Indicator



Running indicator, Port Indicator, Power Supply Indicator



Switch Property



Transmission mode: store and forward

MAC address: 1K

Packet buffer size: 1Mbit

Backplane bandwidth: 12G

Switch time delay: < 10μs



Power Requirement



12~48VDC, 3-pin 7.62mm pitch terminal blocks

Support nonpolarity, reverse polarity protection



Environmental Limit



Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%～95%(no condensation)



Physical

Characteristic



Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight: ≤356g



Industrial Standard



IEC 61000-4-2 (ESD), Level 4

Air discharge: ±16kV

Contact discharge: ±8kV



IEC 61000-4-4 (EFT), Level 2 (IMC102GT-1GF)

Power supply: ±1kV

Ethernet interface: ±0.5kV



IEC 61000-4-4 (EFT), Level 1 (IMC102GT-1GS)

Power supply: ±0.5kV

Ethernet interface: ±0.25kV



Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6



Certification



CE, FCC, RoHS



Warranty



5 years

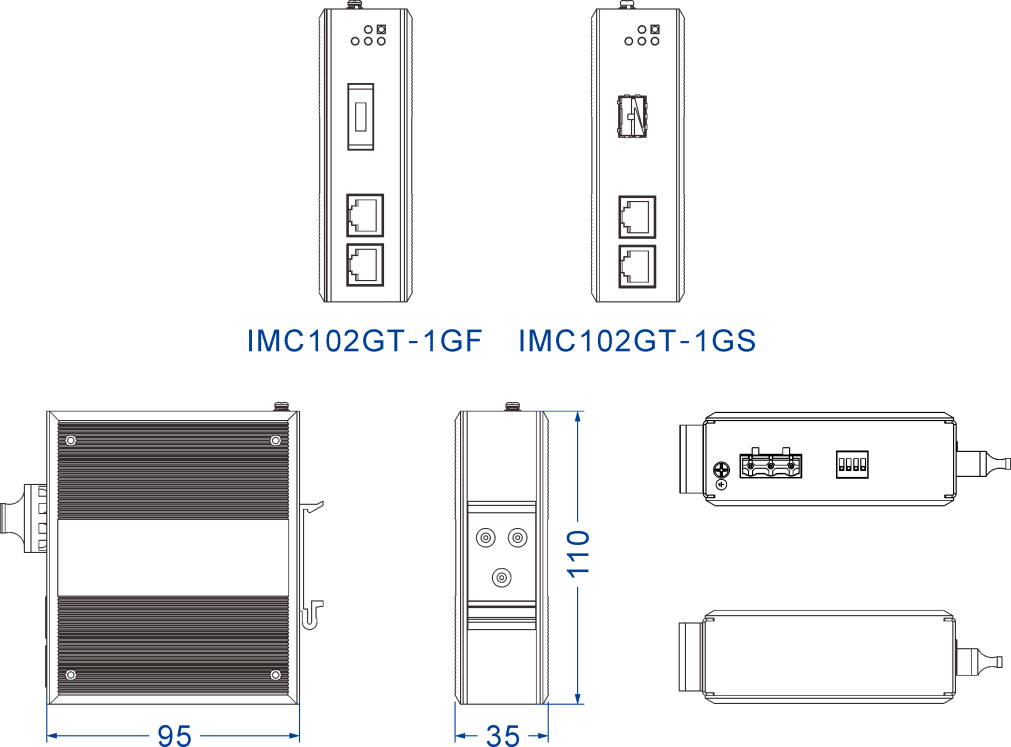

Dimension
Unit:mm

Full Gigabit Unmanaged Media Converter 3 Port 6 Gbps Switch Capacity



Ordering Information



Available Models Gigabit SFP Slot Gigabit Fiber Port Gigabit Copper Port Power Supply Range
IMC102GT-1GF 0 1 2

 12~48VDC
IMC102GT-1GS 1 0 2
